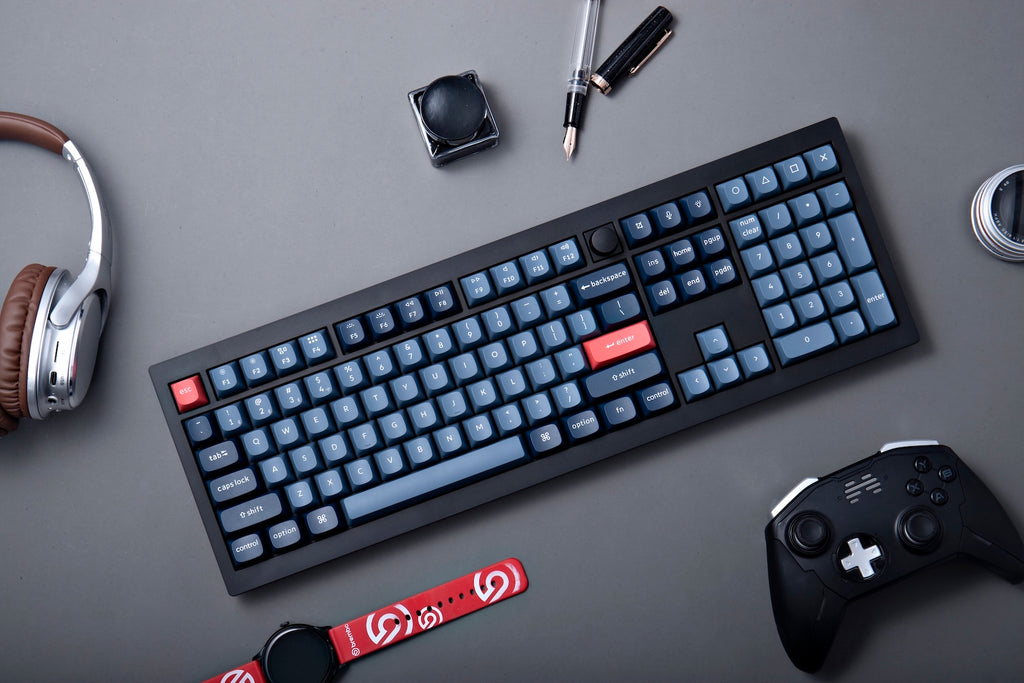

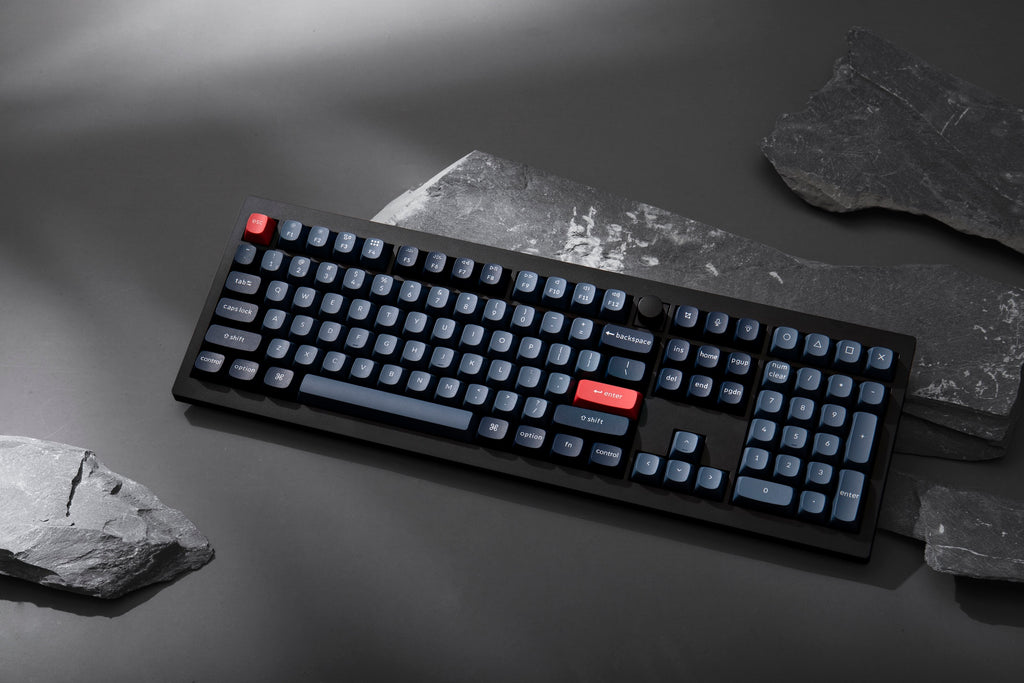

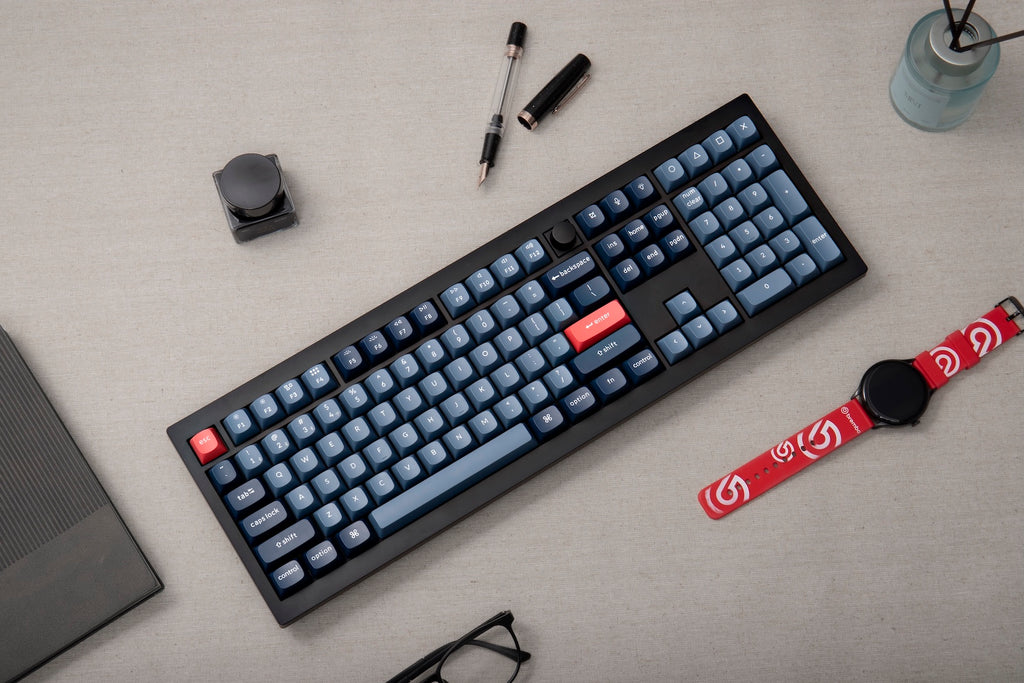

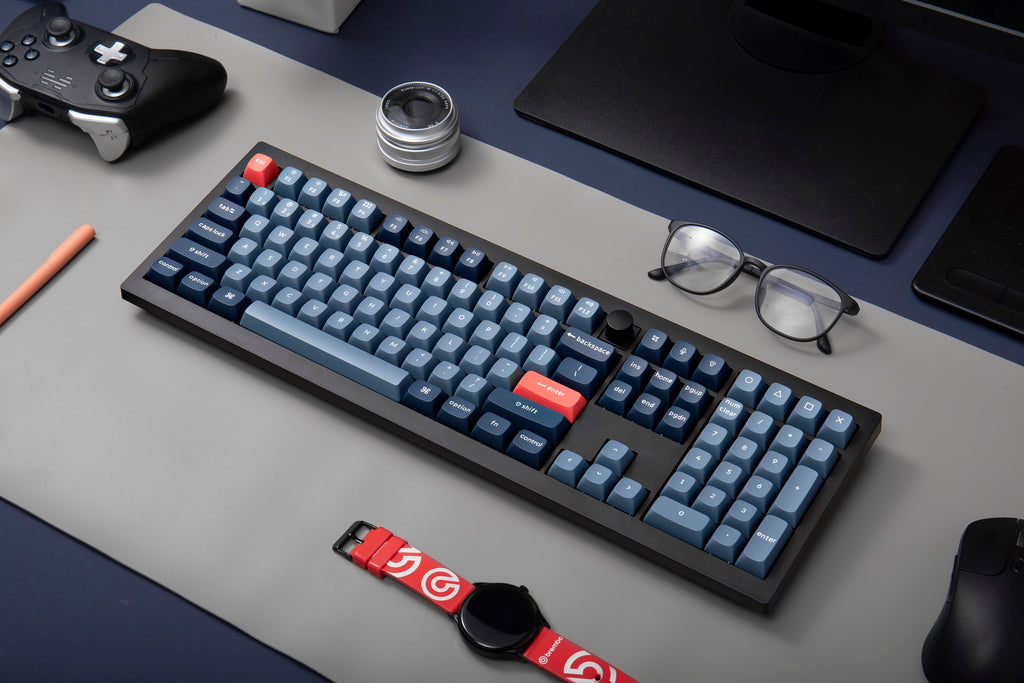

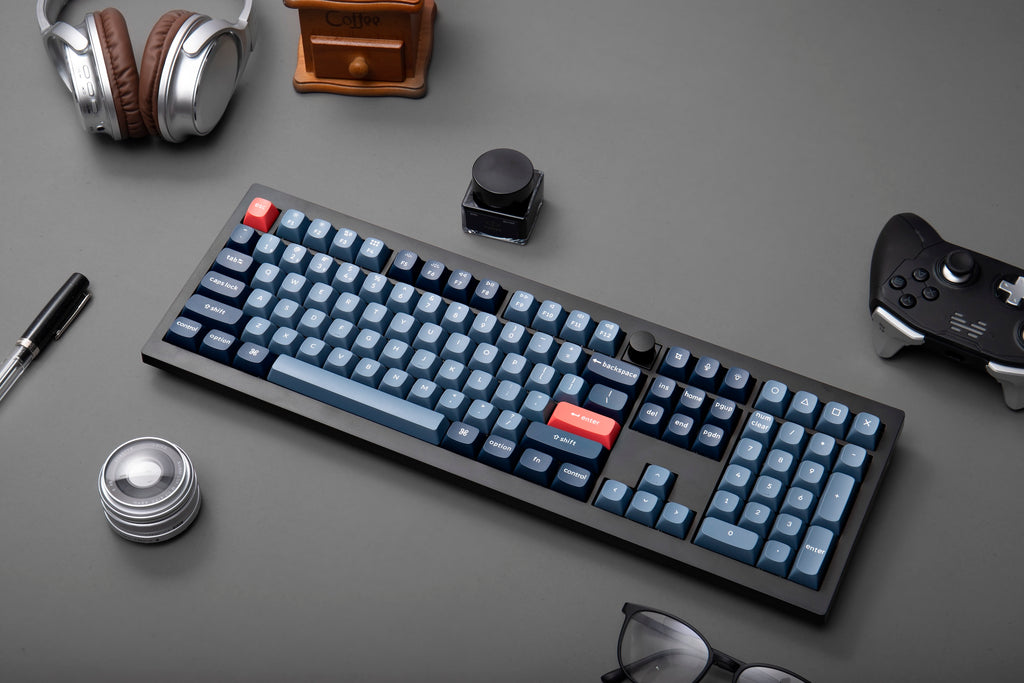

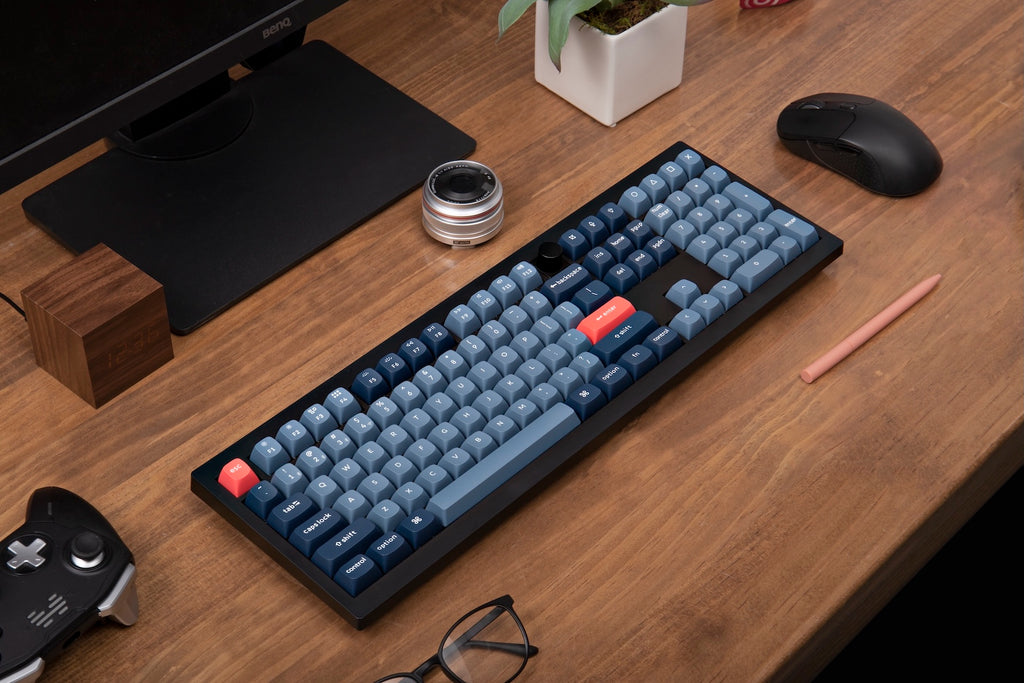

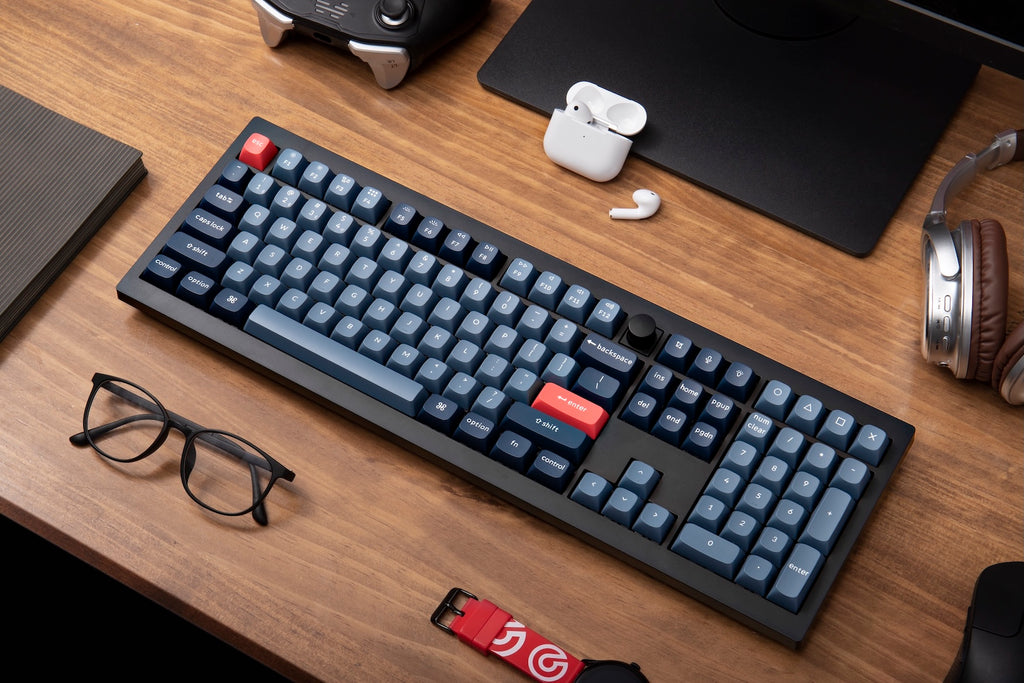

The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.
Product Specifications:
- Width: 149 mm
- Length: 447.9 mm
- Front Height: 23.6 mm (without keycaps)
- Back Height: 32.5 mm (without keycaps)
- Feet Height: 2 mm
- Angle: 3.5° / 8° / 10°
- Weight: 1110 ± 10g (Fully Assembled Version)
- Body Material: ABS Plastic
- Plate Material: PC
- Polling Rate: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
- Mount Style: Gasket Mount Design
- Bluetooth Device Name: Keychron V6 Max
- Battery: 4000 mAh Rechargeable li-polymer battery
- Wireless Working Time (Backlit off): Up to 225 hours (Lab test result may vary by actual use)
- Wireless Working Time (RGB): Up to 100 hours (Lowest brightness)
- Charging Time: Around 5 hours
- Bluetooth Version: 5.1
- Compatible System: Windows/macOS/Linux
- N-Key Rollover (NKRO): Yes for both wireless and wired modes
- Hot-swappable: Yes. Compatible with most 3-pin & 5-pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
- Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
- Switches: Gateron Jupiter (Fully Assembled Version)

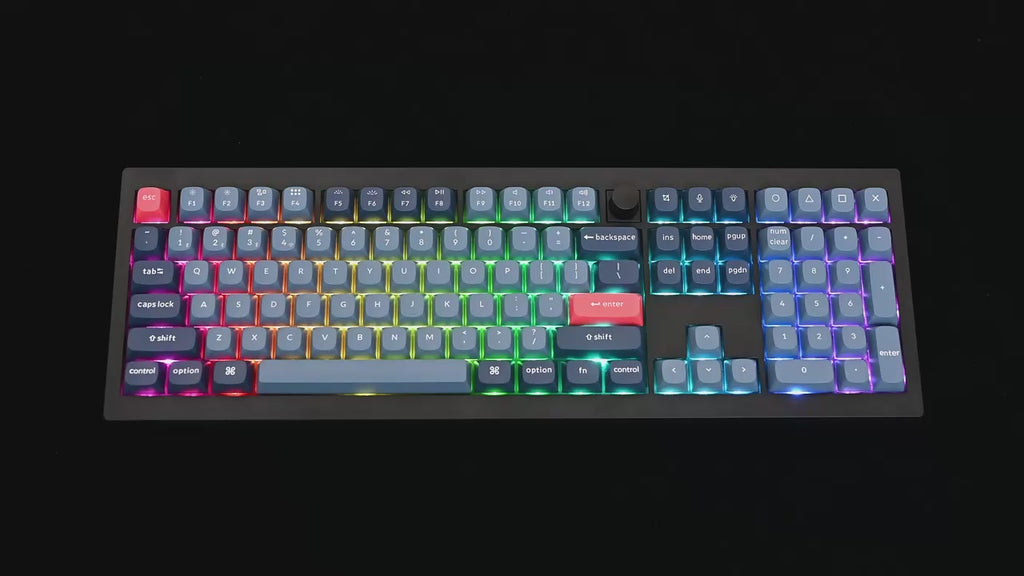

- Backlight: South-facing RGB LED
- Stabilizer: Screw-in PCB stabs
- Charging Port: USB Type-C
- Cable: Type-C cable + Type-A to Type-C adapter
- Operating Environment: -10℃ to 50℃
- QMK/VIA Support
Switch Specifications:
(Table is scrollable)
Our exclusive Gateron Jupiter mechanical switch comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
| Switch Type |
Start Force |
Pre Travel |
Total Travel |
Behavior |
Pre-Lubed |
Sound Level |
Suitable For |

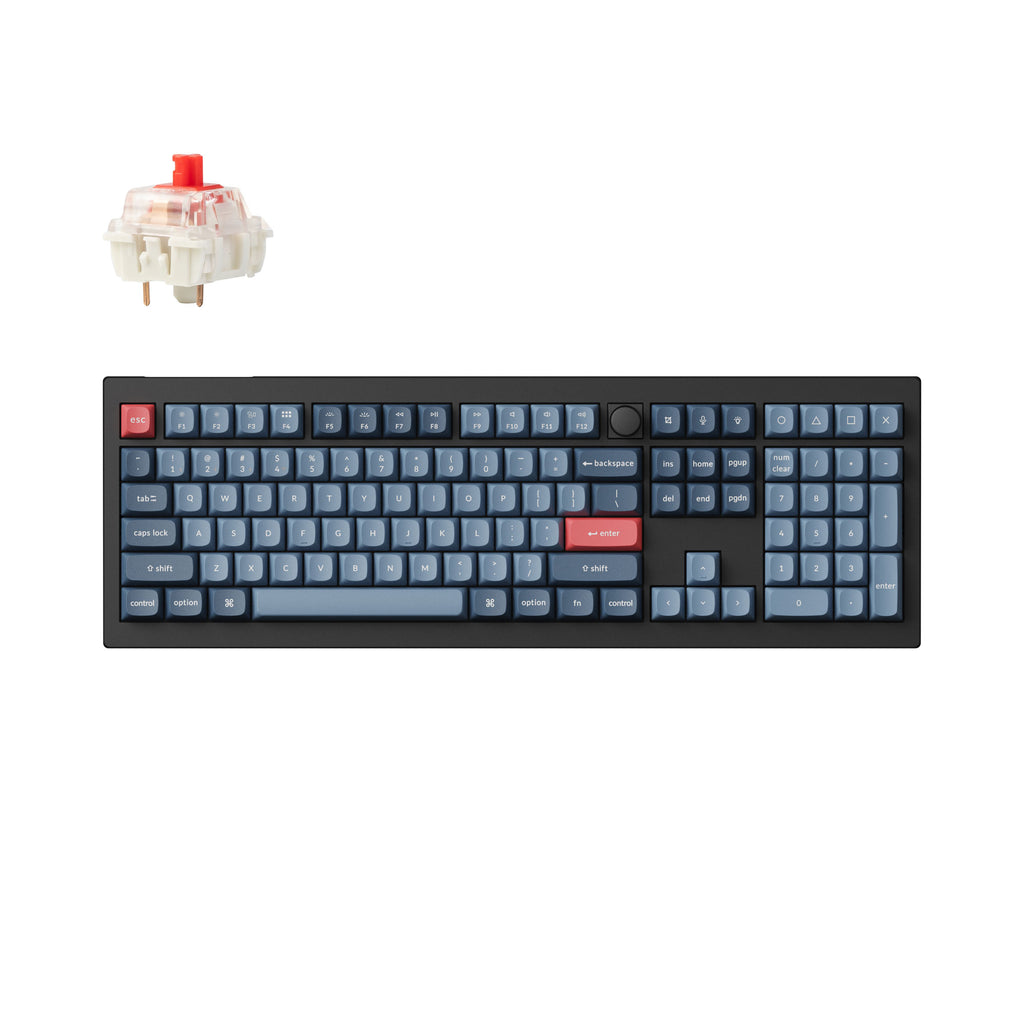

| Jupiter Red |
45g |
2mm |
4mm |
Linear |
Yes |
Quiet |
Office / Gaming |
| Jupiter Brown |
55g |
2mm |
4mm |
Tactile |
Yes |
Gentle |
Midway Office / Gaming |

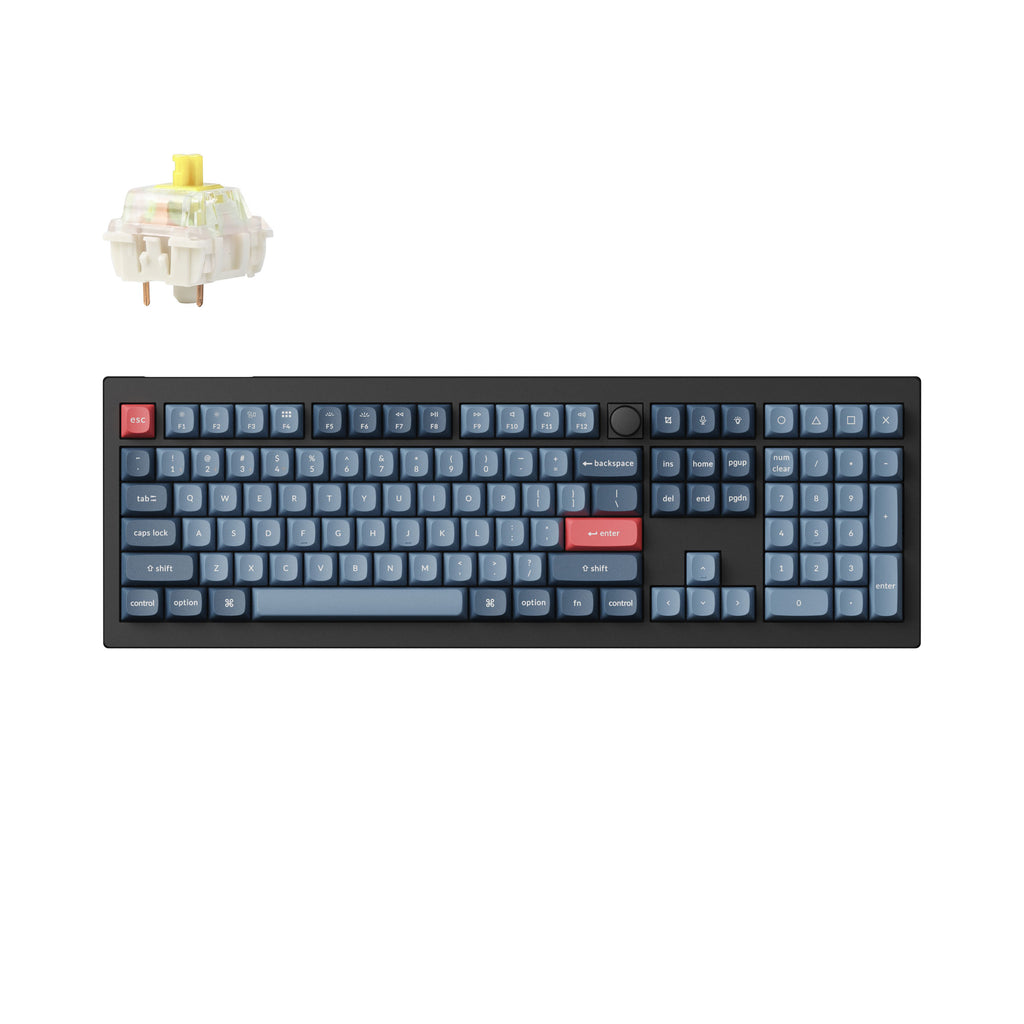

| Jupiter Banana |
59g |
2mm |
3.4mm |
Tactile |
Yes |
Gentle |
Office / Gaming |
What's Included:
- 1x Fully Assembled Keyboard Including (SKU: V6M-D1 / V6M-D3 / V6M-D4):
- 1x Case
- 1x PCB
- 1x PC Plate
- 1x Sound Absorbing Foam
- 8 Sets x Stabilizers
- 1 Set x Keycaps (PBT Double-shot)
- 1 Set x Switches
- 1x Type-C to Type-C Cable
- 1x Type-A to Type-C Adapter
- 1x Extension Adapter for Receiver
- 1x Type-A 2.4 GHz Receiver
- 1x Type-C 2.4GHz Receiver
- 1x Keycap & Switch Puller
- 1x Screwdriver
- 1x Hex Key
The Fine Print:
- Images may depict other variations of the keyboard and are for reference only.
